Optimize Air with Fresh Air Controller KGD CM 112 Operating Voltage DC 12V 24V AC/DC optional

Brand Name : KACISE

Model Number : KGD-CM-112

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Data Refresh Frequency : 1s

Operating Temperature : -10°C - 50°C

Storage Temperature : -20°C - 60°C

Operating Voltage : DC 12V (24V AC/DC optional)

Operating Current : < 140mA

Communication Mode : RS485 (4 - 20mA/0 - 10V/0 - 5V optional)

Contact Now

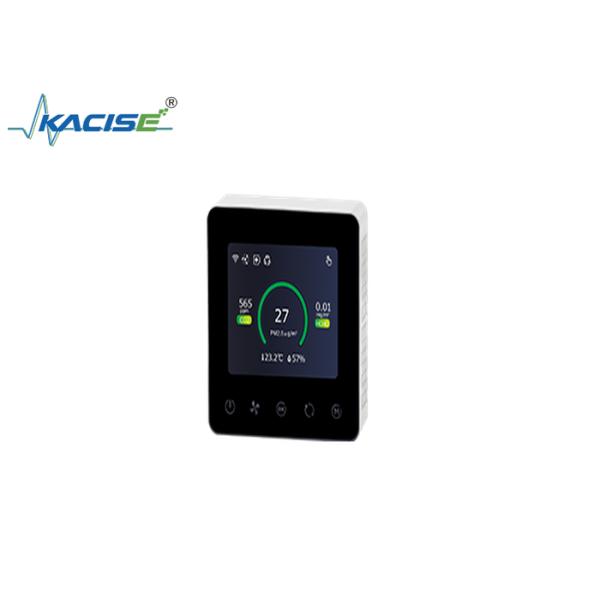

Fresh Air Controller KGD - CM - 112

Product Introduction

The KGD - CM - 112 fresh air controller is equipped with a high-precision sensor module independently developed. It can monitor and display in real time the measured values of five air quality indicators, namely indoor PM2.5, CO₂, formaldehyde, temperature, and humidity. It cooperates with the fresh air control board to directly control the fresh air system, such as functions like adjusting the air volume, controlling the air supply/extraction, and setting the mode. It can be widely applied in residential, commercial, and industrial settings, and effectively improve the air quality, creating a healthy, comfortable, efficient, environmentally friendly, and energy-saving living and working environment.

Optimize Air with Fresh Air Controller KGD CM 112 Operating Voltage DC 12V 24V AC/DC optional

Product Features

  • Achieves linkage with fresh air air conditioners based on the actual measured values of the current environment.
  • Monitors multiple sensor parameters simultaneously and enables visual output.
  • Sensors such as TVOC, PM2.5, CO₂, formaldehyde, temperature, and humidity can be freely combined.
  • Meets customers' customization requirements for appearance and functions.

Technical Parameters

Detection Range PM2.5: 0 - 1000μg/m³ CO₂: 400 - 5000 ppm Formaldehyde: 0 - 1mg/m³ (Maximum detectable value is 1mg/m³) Temperature: -10°C - 50°C Humidity: 0 - 95%RH
Data Refresh Frequency 1s
Operating Temperature -10°C - 50°C
Storage Temperature -20°C - 60°C
Operating Voltage DC 12V (24V AC/DC optional)
Operating Current < 140mA
Communication Mode RS485 (4 - 20mA/0 - 10V/0 - 5V optional)
Product Dimensions W86H86D24.9 (mm)
