KLD806 80G FM Radar Level Sensor
Introduction
Silo radar level measurement uses a pulse generator and a grain bin fill sensor to determine the level of solids present in the silo. The pulse is transmitted down a contact cable or rod, then returns when it encounters the change in dielectric marked by the shift from air to the grain.
Feature
- Measure the level of solid particles, chemical liquid tank, oil tank and process containers.
- Radar level meter is working based on electromagnetic wave. So it could have max 120m measure range.
- Compared with other type level meter, 80G radar level meter could measure different kinds of oil, chemical liquids, solid powder,and many other mediums.
- 80G radar level meter could work in harsh working condition. It won't be affected by temperature, pressure and humidity. With PTFE horn, it even could work in corrosive condition, such as acid liquid.
- Customer also could choose different connection methods, such as flange, thread, bracket.
|
KLD806
|
Medium: solid, storage container, process container,
strong dust application
Measuring range: 0.3m~10/20/30/60/100m
Process connection: flange ≥ DN100
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 76mm lens antenna (purge optional)
Antenna material: PTFE
Accuracy: ±5mm
Protection class: IP67
Center frequency: 80GHz
Launch angle: 3°
Power supply: two-wire /DC24V
four-wire /DC12~24V
four-wire /AC220V
Casing: aluminum/plastic/stainless steel
Signal output: two-wire /4...20mA/HART protocol
four-wire 4...20mA/ RS485 Modbus
|
Dimensions
Installation
1.Flange Installation
When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.
① datum plane
② vessel center or axis of symmetry
2.Hoisting Installation
Installation Requirements
When installing the instrument, avoid installing it above the material inlet, and try to avoid various objects that affect the signal, such as stirring paddles, etc.
Under extremely complex working conditions, the instrument can work normally if there is no obstacle in the area with a radius of 20cm centered on the installation point.
Installation connection diagram:

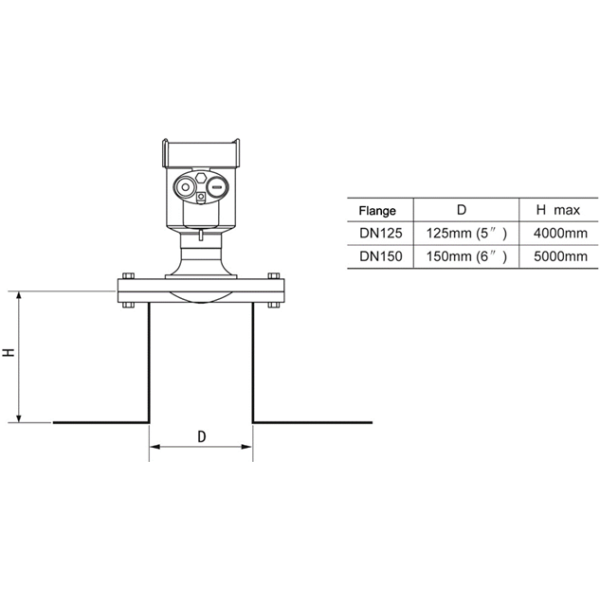

The maximum installation spool height H max depends on the installation spool diameter D and the size of the product launch angle.
Too long installation connection will affect the radar performance.
Dimensions
Casing Dimension
Unit in mm:
Production:
Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.
What we could provide:
- The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog.
- If you are interested in installing at your side, Radar Module is available for sure.
