Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

  • 1
  • 2
  • 3

Brand Name : kacise

Model Number : KUS550

Certification : iso9001

Place of Origin : china

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Delivery Time : 10 working days

Packaging Details : carton or customers requests available

Detection Range : 200mm-3000mm

Response Time : <50ms

Beam Angle : 7° ± 2

IP Grade : IP68

Operating Voltage : 24VDC

Output : Digital Output RS485 Anaolue Output 0-5V Switch Output 0V /5V

Contact Now

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

1.Product Description

The Wireless PVDF Material Ultrasonic Water Level Sensor is a remarkable device. Constructed with PVDF material, it ensures durability and chemical resistance. It features a digital output and operates at 24VDC. This wireless sensor allows for convenient and flexible water level monitoring, enabling real-time data transmission without the hassle of wired connections.

2. Product features:

  • Designed for outdoor or indoor environments
  • High sensitivity
  • Free run operation can continually measure and output ranger information
  • Sensor beam angle is 7 degrees

3. Parameter

General specifications

Model: KUS550
Measuring range

0.25m~3m (5m customizable)KUS550A

0.15m-0.6m(1m customizable)KUS550B;

Blind spot The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm;
Supply voltage 3.3 ... 30 VDC, ripple 10 %SS
Working current ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA;
Output signal 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm;

Working conditions

Working temperature -40…85℃ (233...358K)
Storage temperature -40…85℃ (233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output) .
Protection class IP68
Shell material PVC /PVDF/PTFE/ABS

4.Dimensions

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

5.Wiring

Analogue output type wiring diagram

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Switch output type wiring diagram

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

6.Application

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation
  • Multi-sensors navigation
  • Distance measuring
  • Long range object detection
  • Industrial automation

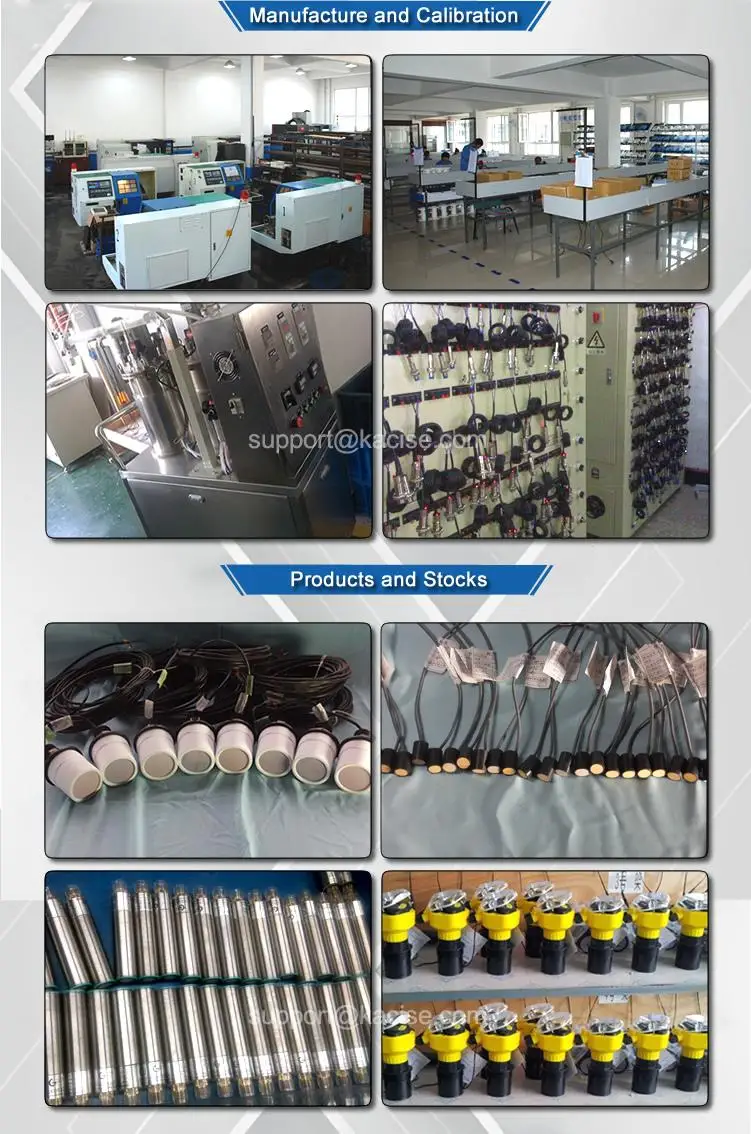

Production Flow

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

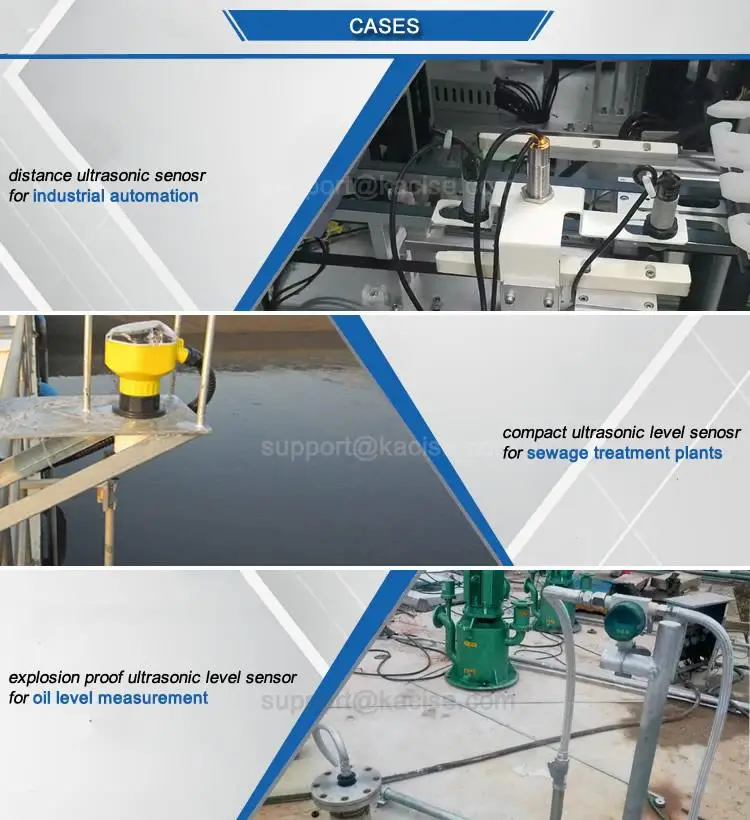

Cases

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Packaging & Shipping

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Certificates

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Company Information

Wireless PVDF Material Ultrasonic Water Level Sensor Digital Output 24VDC Operating Voltage

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, range , output signal, medium( liquid type),

and power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
